Rehabilitation of a Young Patient with Hypoplastic Dentition –A Case Report.
Patient reported to the Department of Prosthodontics with a chief complaint of discoloured teeth
The intraoral photographs of the patient reveals yellowish discolouration of teeth with generalized
On thorough clinical examination it was found that patient has enamel hypoplasia.

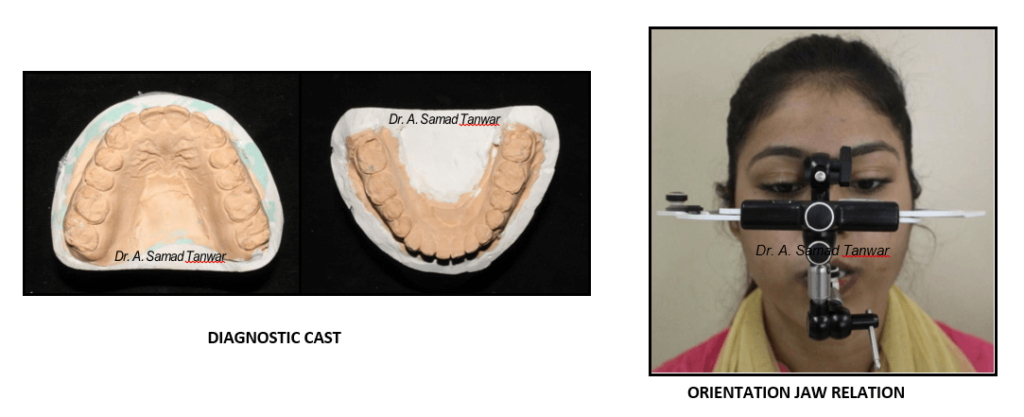

Diagnostic records were

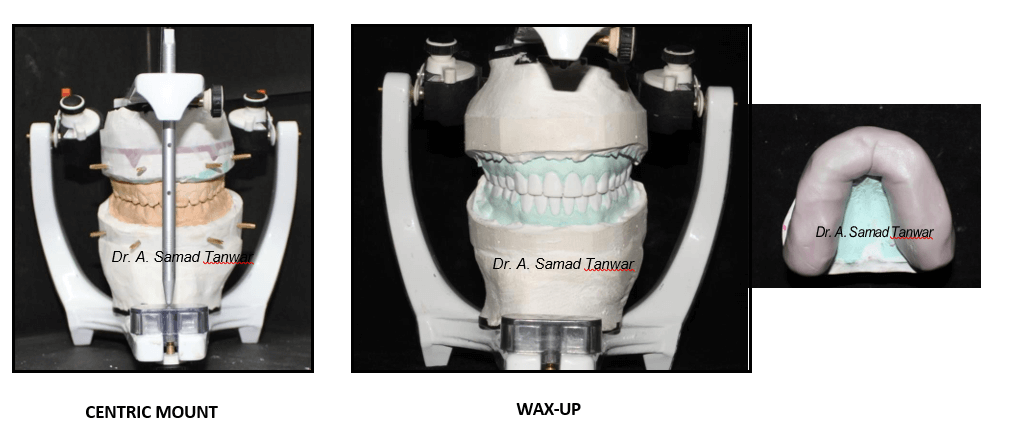

The patient was guided into centric relation and it was mounted on a semi- adjustable
The articulator was programmed using protrusive and lateral interocclusal
Full mouth wax up was done
Putty index was made of the waxed-up cast and with the help of the index composite mock-up was done intraorally.
The aesthetic evaluative mock-up provides the best aesthetic, phonetic and functional outcome and allows for better communication with the patient and laboratory

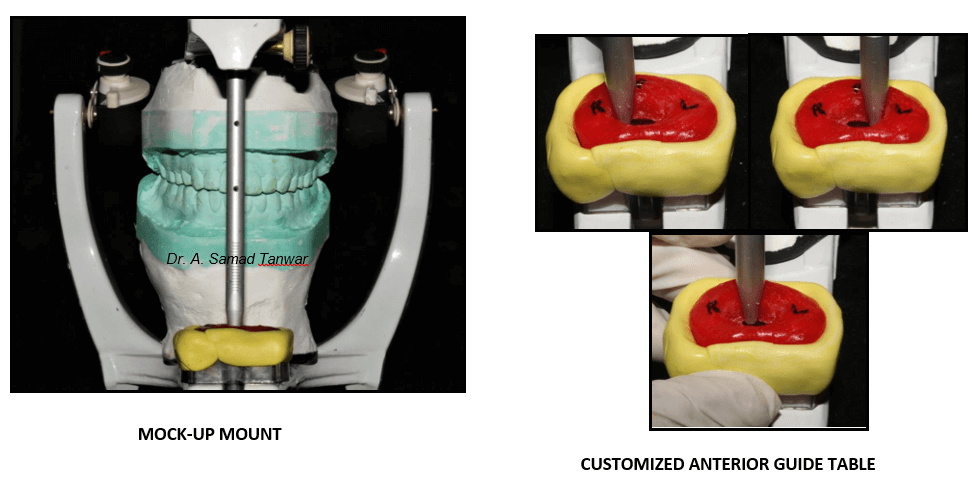

Impression was made of the adjusted mock-up and then it was mounted on a semi-adjustable
Customized anterior guide table was fabricated using pattern resin performing eccentric movements i.e. protrusive, right lateral and left
The preparation should be conservative which is the main principle governing the fabrication of ceramic

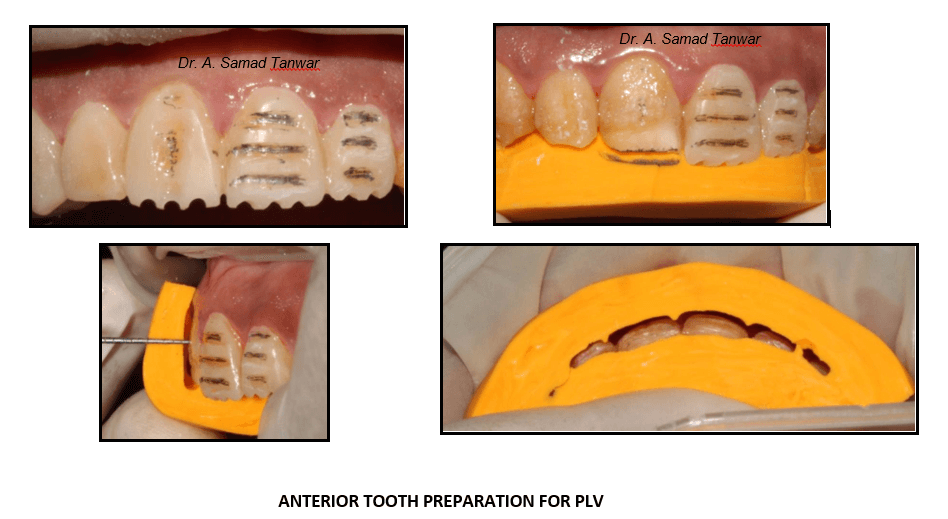

We start with the tooth preparation using the mock-up in place. Horizontal depth grooves were made using depth
The thickness of the ceramic laminate should be 3-0.5mm
A chamfer finish line is given and a bevel is given at the incisal edge to give a butt joint.
The preparation can be checked using
Gingival retraction was done using 000 knitted retraction cord

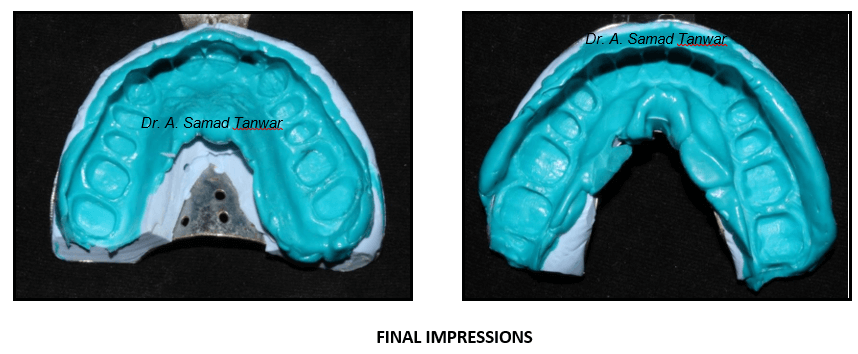

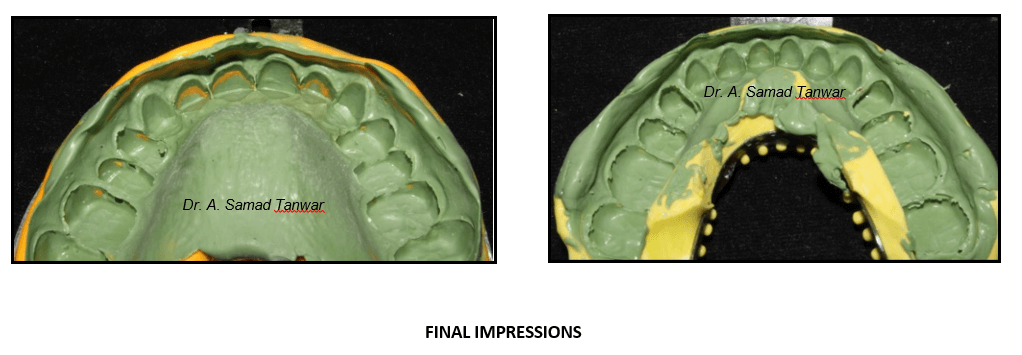

Double mix double step impressions were made using PVS elastomeric impression material
After the preparation stump shade selection was done using VITA stump shade guide.

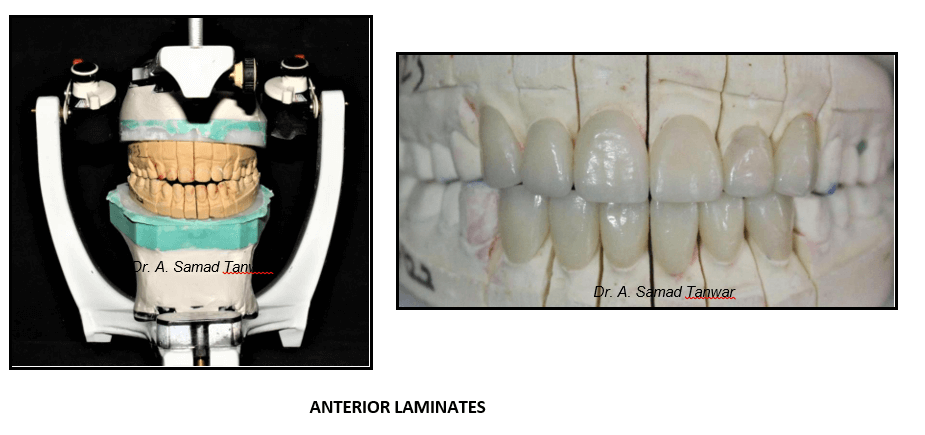

Lithium disilicate glass ceramic was fabricated for maxillary and mandibular Lithium disilicate (Emax) is an aesthetic, high strength material that can be conventionally cemented or adhesively bond.
Lithium disilicate is among the best known glass
Calibra esthetic resin cement was used for the bonding of laminates.
Thoroughly clean all internal surfaces of the veneer with water spray and Etch the surface of the restoration with porcelain etch. Clean with water spray and dry.
Apply calibre silane to the Air dry the silanated surface of the restoration. Apply a single coat of Prime and bond NT adhesive to the internal surface of the veneer. Air dry for 5 sec. Light cure adhesive for 10 sec
Apply Prime & bond adhesive to tooth surface. The surface should remain wet for 20 sec. Gently air dry for 5 sec. light cure adhesive for 10
Dispense the desired calibra veneer Apply it on the veneer. Protect cement from exposure to light.
Seat the Tack the restoration in place by briefly light curing the gingival portion only for no more than 10 seconds. Remove excess cement.
Light cure all marginal areas for 20 seconds from each direction – buccal, lingual and interproximal
Removal of excess cement flash and finishing of the margins if
Immediately after post insertion
Posterior tooth preparations were completed to receive Porcelain fused to Metal restorations.
Double mix double step impressions were made using PVS elastomeric impression material
Occlusal view of the restorations In-situ
Restoration of aesthetic and function by using blend of conventional and minimally invasive
